Introduction

This script performs an analysis of genetic diversity and interaction among maintainers of commercial soybean cultivars using selfing. The analysis involves several steps, including data preprocessing, variable selection using Random Forest, dimensionality reduction with Multiple Correspondence Analysis (MCA), and clustering with Self-Organizing Maps (SOM). The results are visualized through various plots to interpret the patterns of diversity and trait distributions.

This document presents the main steps of the analysis described in the article:

Costa, W.G., et al. (2025). Genetic diversity and interaction between the maintainers of commercial Soybean cultivars using selfing. Crop Science.
DOI: 10.1002/csc2.20816

We will go through the following stages:

Data preparation
Variable selection with Random Forest
Dimensionality reduction with MCA
Clustering with Self-Organizing Maps (SOM)
Visualization of diversity and trait distributions

Step 1: Loading Libraries

We start by loading the main R packages used in the analysis.

library("FactoMineR")     # Métodos de análise multivariada, incluindo MCA (Multiple Correspondence Analysis)
library("factoextra")     # Funções para visualização elegante de resultados de análises multivariadas (PCA, MCA, clustering)
library(readxl)           # Importação de arquivos Excel (.xlsx), onde estão armazenados os dados brutos
library(randomForest)     # Implementação do algoritmo Random Forest para seleção de variáveis e análise de importância
library(tidyverse)        # Conjunto de pacotes (dplyr, ggplot2, tidyr, etc.) para manipulação e visualização de dados
require(magrittr)         # Operador pipe (%>%) e funções auxiliares para tornar o código mais legível
require(reshape2)         # Funções para reorganizar dados (melt, cast), úteis em gráficos e análises
library(ggforce)          # Extensões do ggplot2 para gráficos avançados (arcos, diagramas, formas geométricas)
library("kohonen")        # Implementação de Mapas Auto-Organizáveis (Self-Organizing Maps - SOM) para clustering
library(RColorBrewer)     # Paletas de cores pré-definidas para melhorar a estética dos gráficos
require("ggrepel")        # Rótulos de texto em gráficos ggplot2 que evitam sobreposição (geom_text_repel)
library(gridExtra)        # Combinação e organização de múltiplos gráficos em uma mesma página/figura

Step 2: Defining Colors

We define a qualitative color palette using RColorBrewer.
These palettes are especially useful for categorical data, ensuring that groups (e.g., maintainers or trait categories) are visually distinct in the plots.

qual_col_pals = brewer.pal.info[brewer.pal.info$category == 'qual', ]
col_vector = unlist(mapply(brewer.pal, qual_col_pals$maxcolors, rownames(qual_col_pals)))

Step 3: Reading the Data

We import the dataset containing information about soybean cultivar maintainers and their morphological descriptors.
The data is stored in an Excel file (data.xlsx).

data <- read_excel("data/data.xlsx")

Step 4: Data Cleaning

To ensure robust analysis, we remove maintainers with very few observations (≤ 5).
Small sample sizes can introduce noise and bias in clustering and multivariate methods, so filtering them out improves the reliability of the results.

lower5 <- data %>%
  group_by(Maintainer_coded) %>%
  count() %>%
  filter(n <= 5)

data <- data[!data$Maintainer_coded %in% lower5$Maintainer_coded, ]

Step 5: Transforming Variables into Factors

Most of the descriptors in the dataset are categorical traits (e.g., seed color, growth type, pubescence density).
To ensure that statistical methods such as Random Forest and Multiple Correspondence Analysis (MCA) handle them correctly, we convert all variables into factors.

for (i in 1:ncol(data)) {
  data[[i]] = as.factor(data[[i]])
}

Explanation:
By converting all columns into factors, we guarantee that categorical variables are treated as qualitative data rather than numeric codes. This step is essential for analyses that rely on the categorical nature of traits, such as MCA, which is designed specifically for factor variables.

Step 6: Variable Selection with Random Forest

In this step, we apply the Random Forest algorithm to identify which traits are most important for distinguishing soybean cultivar maintainers.
Random Forest is an ensemble method that builds multiple decision trees and aggregates their results, providing both classification accuracy and a measure of variable importance.

Goal: Reduce dimensionality by focusing on the most informative traits.
Output: A ranking of traits based on their contribution to classification accuracy and node purity (Gini index).

set.seed(123) # Ensures reproducibility

# Excluding Name, Maintainer and Year variables (not used in the analysis)
data = data[, -c(1, 2, 5)]

ntraits <- (ncol(data) - 1) / 3 # Number of traits divided by 3
ntree <- 500 # Number of trees

# Fit Random Forest model
rf_model <- randomForest(
  data$Maintainer_coded ~ .,
  data = data,
  mtry = ntraits,
  importance = TRUE,
  proximity = TRUE,
  ntree = ntree,
  na.action = na.roughfix
)

Explanation:
The Random Forest model provides two importance measures:
- Accuracy: how much classification accuracy decreases if the variable is removed.
- Gini Index: how much the variable contributes to node purity in decision trees.

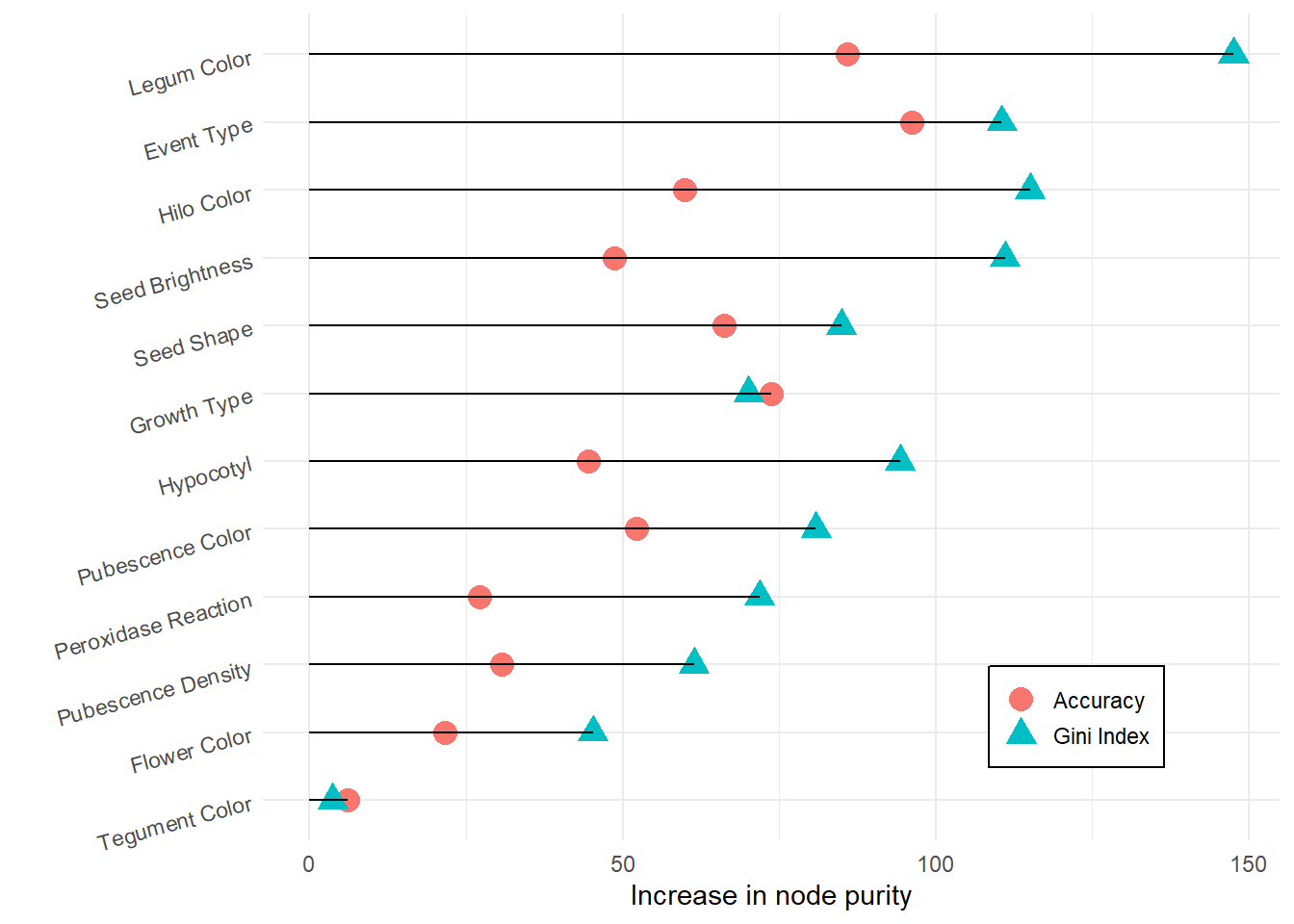

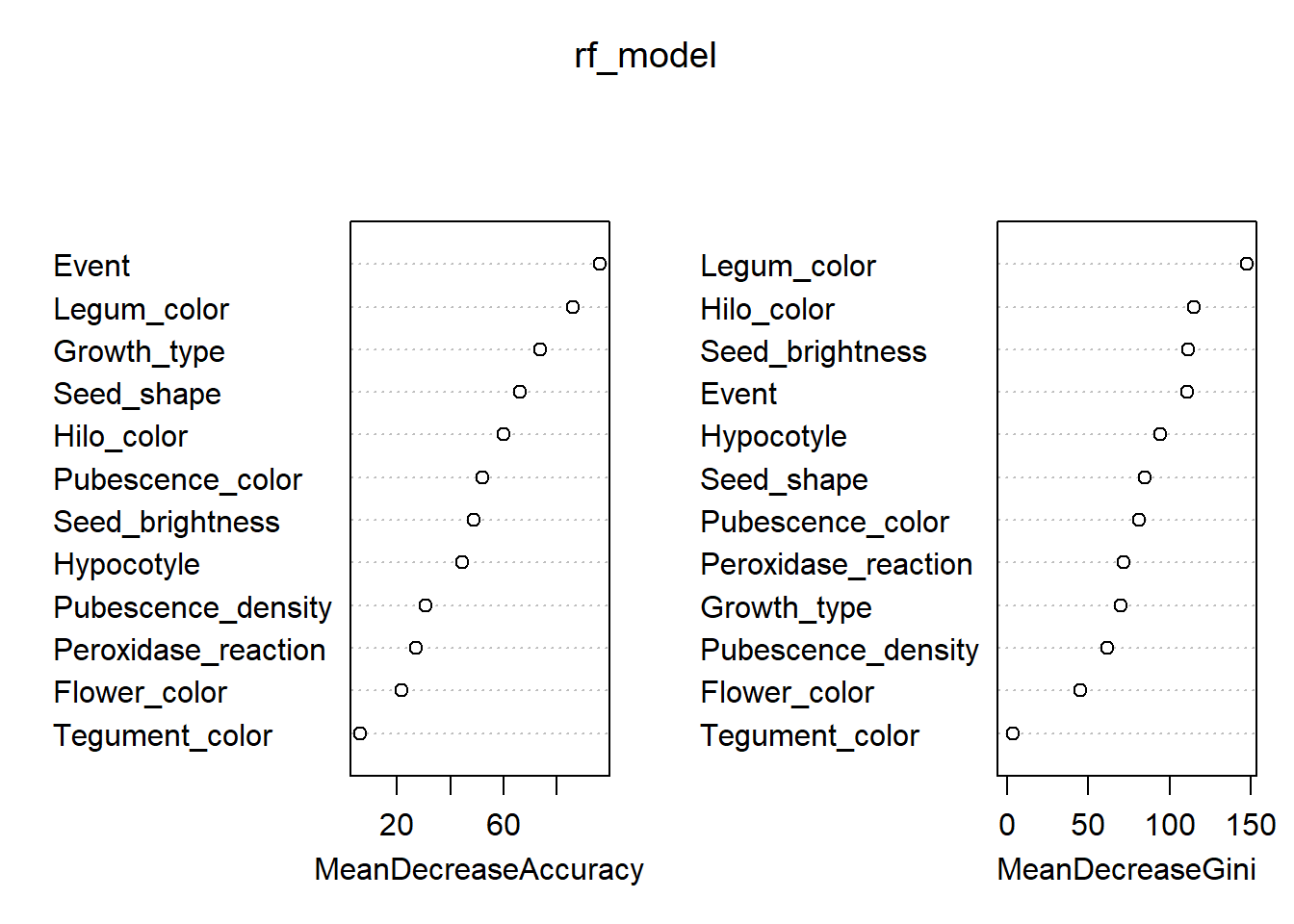

Importance of traits based on Accuracy and Gini Index

imp <- as.data.frame(varImpPlot(rf_model))

imp$traitnames <- rownames(imp)
imp_trait <- melt(imp, id.var = "traitnames")
imp_trait$traitnames <- as.factor(imp_trait$traitnames)
levels(imp_trait$traitnames) <- c(
  "Event Type",
  "Flower Color",
  "Growth Type",
  "Hilo Color",
  "Hypocotyl",
  "Legum Color",
  "Peroxidase Reaction",
  "Pubescence Color",
  "Pubescence Density",
  "Seed Brightness",
  "Seed Shape",
  "Tegument Color"
)

Plot importance of traits

imp_trait %>%
  mutate(traitnames = fct_reorder(traitnames, value)) %>%
  ggplot(aes(x = traitnames, y = value)) +
  geom_point(aes(colour = variable, shape = variable), size = 4) +
  scale_colour_discrete(labels = c("Accuracy", "Gini Index")) +
  scale_shape_discrete(labels = c("Accuracy", "Gini Index")) +
  geom_segment(aes(
    x = traitnames,
    xend = traitnames,
    y = 0,
    yend = value
  )) +
  ylab("Increase in node purity") +
  xlab("") +
  theme_minimal() +
  theme(
    legend.position = c(0.8, 0.15),
    legend.title = element_blank(),
    legend.background = element_rect(fill = "white", colour = "black"),
    legend.key.size = unit(0.5, "cm"),
    axis.text.y = element_text(angle = 15, vjust = 0.5, hjust = 1)
  ) +
  coord_flip()

Excluding the 4 least important traits

To simplify the dataset and reduce noise, we exclude the four traits with the lowest importance scores.

x <- imp_trait %>%
  group_by(traitnames) %>%
  summarise(value = mean(value)) %>%
  slice_min(value, n = 4, with_ties = FALSE) %>%
  ungroup()

colnames(data) <- c(
  "Maintainer_coded",
  "Event Type",
  "Flower Color",
  "Legum Color",
  "Seed Shape",
  "Tegument Color",
  "Hypocotyl",
  "Pubescence Color",
  "Pubescence Density",
  "Hilo Color",
  "Peroxidase Reaction",
  "Growth Type",
  "Seed Brightness"
)

# Remove the least important traits
data <- data %>% select(!any_of(x$traitnames))

Step 7: Multiple Correspondence Analysis (MCA)

In this step, we apply Multiple Correspondence Analysis (MCA) to reduce the dimensionality of the categorical dataset.
MCA is particularly suitable for analyzing relationships between categorical variables, allowing us to summarize the information into a smaller number of dimensions while preserving as much variance as possible.

Running MCA

We run MCA on the dataset, treating the first column (Maintainer_coded) as a supplementary qualitative variable (not used to build the axes but projected afterwards).

res.mca <- MCA(
  data,
  quali.sup = 1,   # Maintainer_coded as supplementary variable
  graph = FALSE,   # Suppress automatic plots
  ncp = 54         # Number of dimensions to compute
)

Eigenvalues

The eigenvalues represent the amount of variance explained by each dimension.
By examining them, we can decide how many dimensions are relevant for interpretation.

eig.val <- get_eigenvalue(res.mca)
eig.val

        eigenvalue variance.percent cumulative.variance.percent
Dim.1  0.402480476       5.96267372                    5.962674
Dim.2  0.284778036       4.21893386                   10.181608
Dim.3  0.270253673       4.00375812                   14.185366
Dim.4  0.203433768       3.01383360                   17.199199
Dim.5  0.187328114       2.77523131                   19.974431
Dim.6  0.184031980       2.72639971                   22.700830
Dim.7  0.167652926       2.48374705                   25.184577
Dim.8  0.162517355       2.40766453                   27.592242
Dim.9  0.152768789       2.26324131                   29.855483
Dim.10 0.151812314       2.24907132                   32.104555
Dim.11 0.148000840       2.19260504                   34.297160
Dim.12 0.144838569       2.14575658                   36.442916
Dim.13 0.143065848       2.11949404                   38.562410
Dim.14 0.140373737       2.07961091                   40.642021
Dim.15 0.139461100       2.06609037                   42.708111
Dim.16 0.136846878       2.02736115                   44.735473
Dim.17 0.134072117       1.98625359                   46.721726
Dim.18 0.131163553       1.94316375                   48.664890
Dim.19 0.128359156       1.90161712                   50.566507
Dim.20 0.127350293       1.88667100                   52.453178
Dim.21 0.126977040       1.88114133                   54.334319
Dim.22 0.125921907       1.86550973                   56.199829
Dim.23 0.125356705       1.85713638                   58.056966
Dim.24 0.125303122       1.85634254                   59.913308
Dim.25 0.124671194       1.84698065                   61.760289
Dim.26 0.123799723       1.83406997                   63.594359
Dim.27 0.122764633       1.81873531                   65.413094
Dim.28 0.121421046       1.79883032                   67.211924
Dim.29 0.120260820       1.78164178                   68.993566
Dim.30 0.117533062       1.74123054                   70.734797
Dim.31 0.115027236       1.70410720                   72.438904
Dim.32 0.114202013       1.69188168                   74.130785
Dim.33 0.111507893       1.65196878                   75.782754
Dim.34 0.109699995       1.62518511                   77.407939
Dim.35 0.108166876       1.60247224                   79.010412
Dim.36 0.106518586       1.57805313                   80.588465
Dim.37 0.105464112       1.56243129                   82.150896
Dim.38 0.101919534       1.50991903                   83.660815
Dim.39 0.099461844       1.47350881                   85.134324
Dim.40 0.097671687       1.44698795                   86.581312
Dim.41 0.094878115       1.40560170                   87.986914
Dim.42 0.093241012       1.38134833                   89.368262
Dim.43 0.088330043       1.30859323                   90.676855
Dim.44 0.082579662       1.22340241                   91.900257
Dim.45 0.078630285       1.16489312                   93.065151
Dim.46 0.074562314       1.10462688                   94.169777
Dim.47 0.071196443       1.05476212                   95.224540
Dim.48 0.065856898       0.97565775                   96.200197
Dim.49 0.063338828       0.93835301                   97.138550
Dim.50 0.056963360       0.84390163                   97.982452
Dim.51 0.054646507       0.80957788                   98.792030
Dim.52 0.052252523       0.77411146                   99.566141
Dim.53 0.025303341       0.37486431                   99.941006
Dim.54 0.003982118       0.05899435                  100.000000

# Convert to data frame for plotting
eig.val <- as.data.frame(eig.val)
eig.val$Dimension <- as.numeric(str_replace(rownames(eig.val), "Dim.", ""))

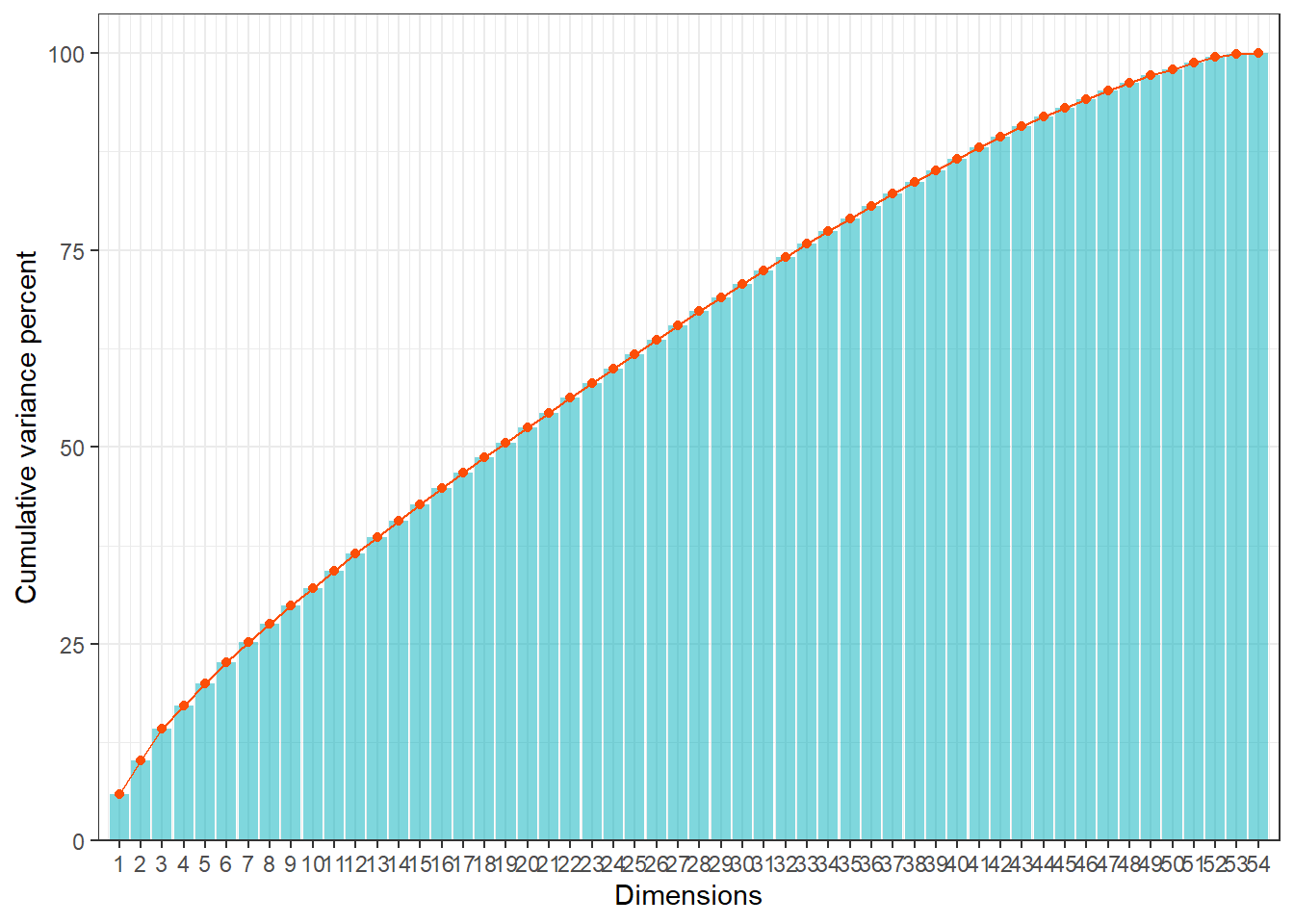

Cumulative Variance Explained

We plot the cumulative variance explained by the dimensions.
This helps us identify the number of dimensions that capture most of the variability in the data.

ggplot(data = eig.val, aes(x = Dimension, y = cumulative.variance.percent)) +
  geom_bar(stat = "identity", fill = "#00AFBB", alpha = 0.5) +
  geom_point(colour = "#FC4E07") +
  geom_line(colour = "#FC4E07") +
  scale_x_continuous(breaks = c(1:nrow(eig.val)), expand = c(0.01, 0)) +
  scale_y_continuous(expand = expansion(mult = c(0, .05))) +
  theme_bw() +
  labs(
    x = "Dimensions",
    y = "Cumulative variance percent"
  )

Interpretation:
- The first few dimensions usually explain the majority of the variance.
- We will focus on these dimensions in the next steps (clustering with SOM), as they capture the most relevant patterns of diversity among maintainers.

Step 8: Clustering with Self-Organizing Maps (SOM)

In this step, we use Kohonen’s Self-Organizing Maps (SOM) to group soybean cultivar maintainers based on their coordinates obtained from the MCA.
SOM is an unsupervised neural network that projects high-dimensional data into a two-dimensional grid, preserving the topological relationships between observations.
This allows us to identify clusters of maintainers with similar genetic profiles.

Defining the SOM Grid

We first define the network topology (grid) and parameters for training the SOM.

map_dimension = 4: creates a 4x4 hexagonal grid (16 neurons).
n_iterations = 2000: number of training iterations.
topo = "hexagonal": hexagonal topology ensures smoother neighborhood relations.
toroidal = FALSE: edges of the grid are not connected.

# Network topology and parameters
map_dimension = 4
n_iterations = 2000

# Define SOM grid
som_grid = kohonen::somgrid(
  xdim = map_dimension,
  ydim = map_dimension,
  topo = "hexagonal",
  toroidal = FALSE
)

# Coordinates of maintainers in the MCA space (54 dimensions)
b <- res.mca[["quali.sup"]][["coord"]]

Training the SOM

We now train the SOM using the MCA coordinates as input.
The data is scaled to ensure all dimensions contribute equally to the distance calculations.

rlen = n_iterations: number of iterations.
alpha = c(0.05, 0.01): learning rate schedule (starts at 0.05 and decreases to 0.01).
dist.fcts = 'euclidean': Euclidean distance is used to measure similarity.

set.seed(123) # Ensures reproducibility

m = kohonen::supersom(
  scale(b),          # Input data (scaled MCA coordinates)
  grid = som_grid,   # SOM grid defined above
  rlen = n_iterations,
  alpha = c(0.05, 0.01),
  dist.fcts = 'euclidean'
)

Interpretation:
The trained SOM organizes maintainers into clusters on the 2D grid.
- Each hexagon (neuron) represents a group of maintainers with similar trait profiles.
- Neighboring hexagons contain maintainers that are more similar to each other.
- This clustering will be visualized in the next steps to interpret diversity and interaction patterns.

Step 9: Visualizing the SOM Results

After training the Self-Organizing Map (SOM), we now explore its outputs through different visualizations.
These plots help us evaluate the quality of the training, the stability of the clusters, and the relationships between neighboring neurons.

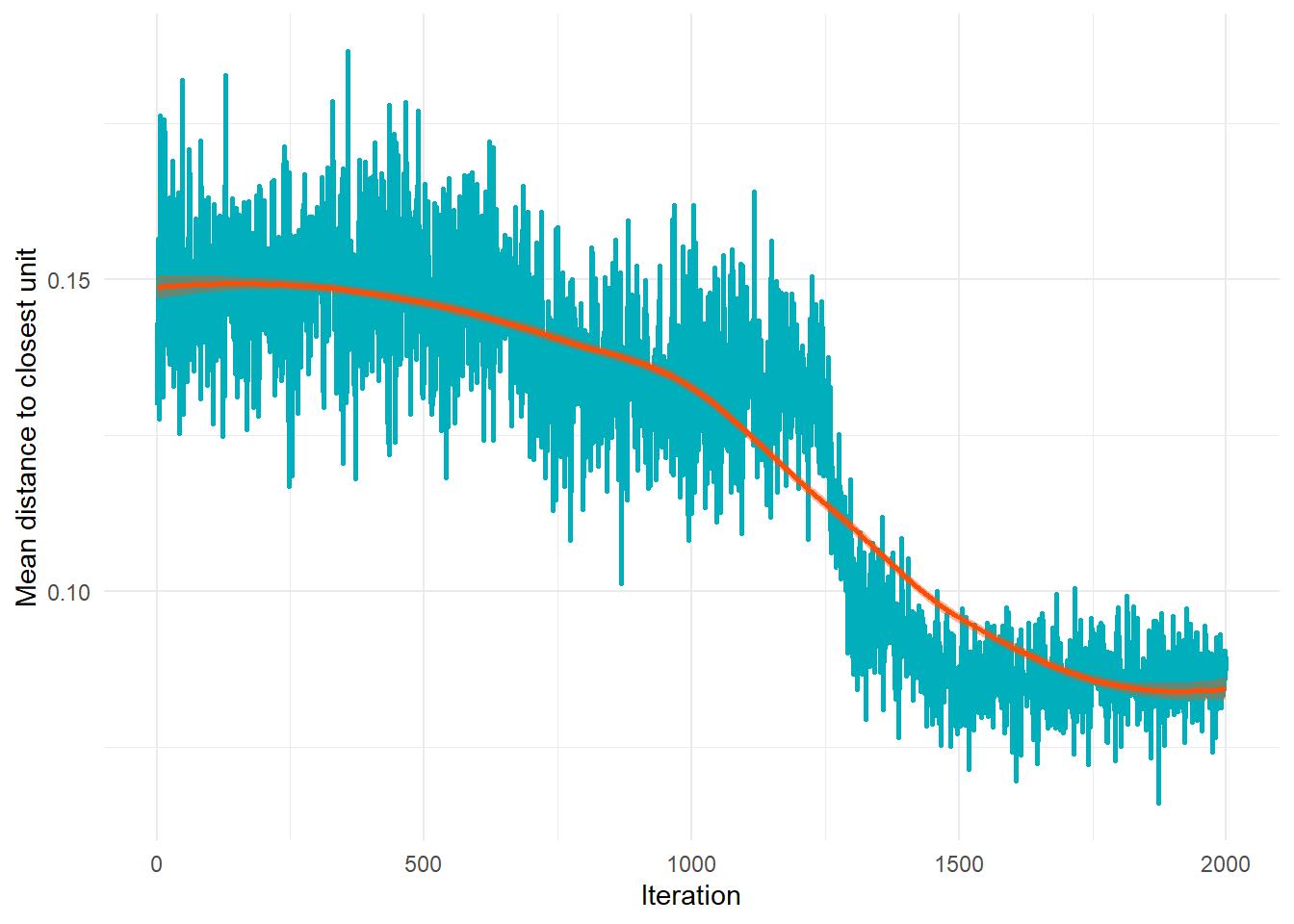

Interaction Graph

The interaction graph shows how the average distance to the closest unit decreases during training.
A smooth decline indicates that the SOM is converging and stabilizing.

progress <- as.data.frame(cbind(m$changes, 1:nrow(m$changes)))
colnames(progress) <- c("Mean distance to closest unit", "Iteration")

ggplot(progress, aes(Iteration, `Mean distance to closest unit`)) +
  geom_line(color = "#00AFBB", linewidth  = 1) +
  stat_smooth(color = "#FC4E07",
              fill = "#FC4E07",
              method = "loess") +
  theme_minimal() +
  labs(y = colnames(progress[1]))

Interpretation:
- The curve should decrease as iterations progress.
- A plateau indicates that the SOM has reached stability.

Trait Frequency

We assign each maintainer to a SOM unit (cluster) and merge this classification back into the dataset.
This allows us to analyze the frequency of traits within each cluster.

grouping <- as_tibble(cbind(m$unit.classif, rownames(b)))
colnames(grouping) <- c("group", "Maintainer_coded")
grouping$group <- as.factor(grouping$group)
grouping$Maintainer_coded <- as.factor(grouping$Maintainer_coded)

# Merge cluster assignment into the dataset
data <- data %>% left_join(grouping)

Interpretation:
Each maintainer is now associated with a cluster (group), enabling trait distribution analysis across clusters.

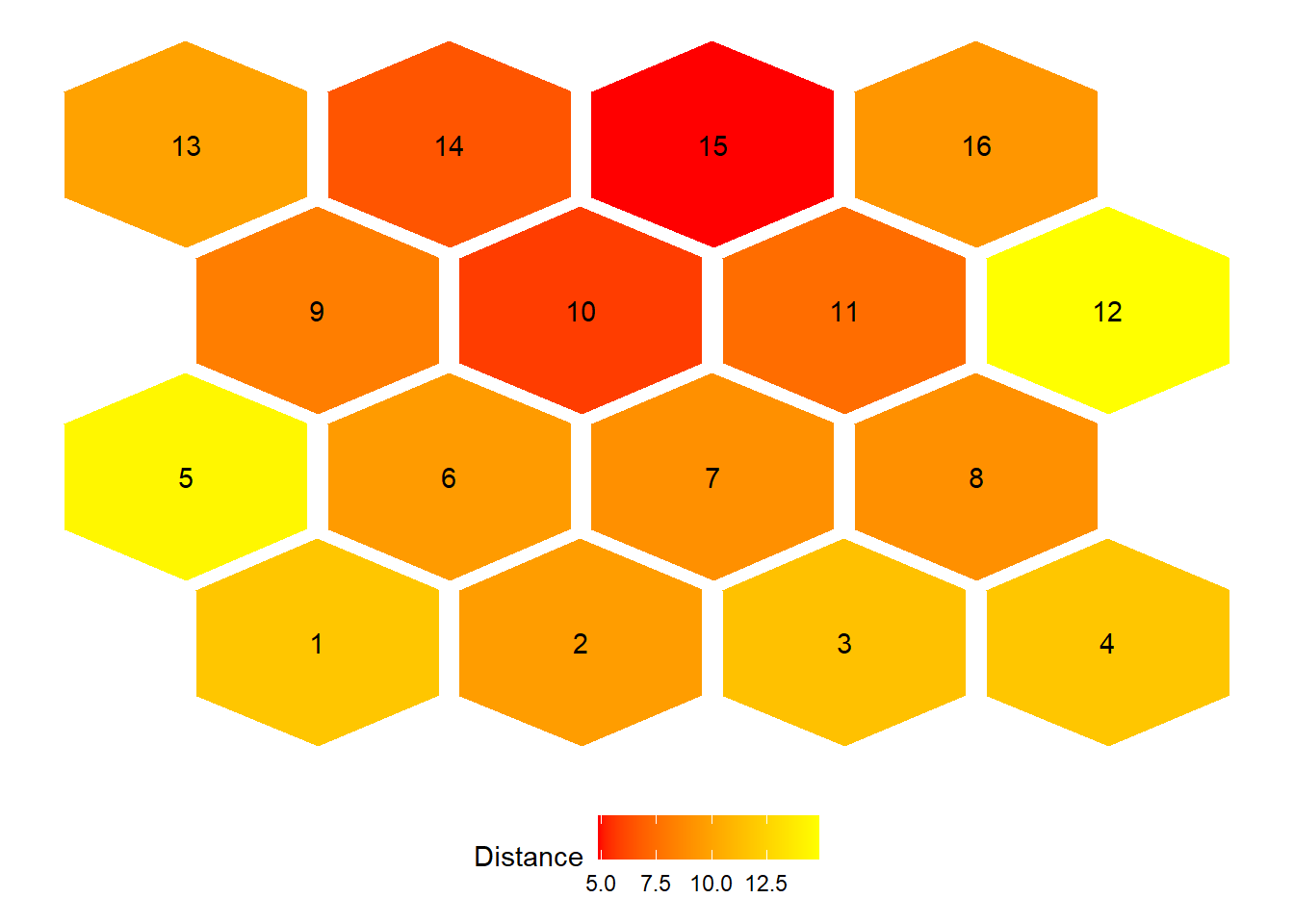

Distance Graph Between Neighboring Neurons

This visualization shows the average distance between neighboring neurons in the SOM grid.
It highlights regions of the map where clusters are more distinct (larger distances) or more similar (smaller distances).

som_coord <- m[[4]]$pts %>%
  as_tibble %>%
  mutate(group = as.integer(row_number()))

som_pts <- tibble(group = as.integer(m[[2]]),
                  dist = m[[3]])

ndist <- unit.distances(m$grid)
cddist <- as.matrix(object.distances(m, type = "codes"))
cddist[abs(ndist - 1) > .001] <- NA
neigh.dists <- colMeans(cddist, na.rm = TRUE)
som_coord <- som_coord %>% mutate(dist = neigh.dists)

neigdists <- som_coord %>%
  ggplot(aes(x0 = x, y0 = y)) +
  geom_regon(aes(
    r = 0.5,
    angle = 11,
    sides = 6,
    fill = dist
  ),
  expand = unit(0.1, 'cm')) +
  scale_fill_gradient(low = "red", high = "yellow", name = "Distance") +
  theme(
    panel.background = element_blank(),
    axis.ticks = element_blank(),
    panel.grid = element_blank(),
    axis.text = element_blank(),
    axis.title = element_blank(),
    legend.position = "bottom"
  ) +
  geom_text_repel(
    data = som_coord,
    aes(x = x, y = y, label = group),
    hjust        = 0.5,
    force = 0,
    color = "black",
    show.legend = FALSE,
    segment.color = NA
  )

neigdists

Interpretation:
- Red areas indicate neurons that are more distinct from their neighbors (potential cluster boundaries).
- Yellow areas indicate neurons that are more similar to their neighbors (homogeneous regions).
- The labels show the neuron (cluster) IDs.

Step 10: Distribution of Maintainers and Traits in SOM Clusters

After training and validating the SOM, we now visualize how maintainers and their traits are distributed across the clusters.
This step is crucial to interpret the biological meaning of the clusters and to identify which characteristics are most associated with each group.

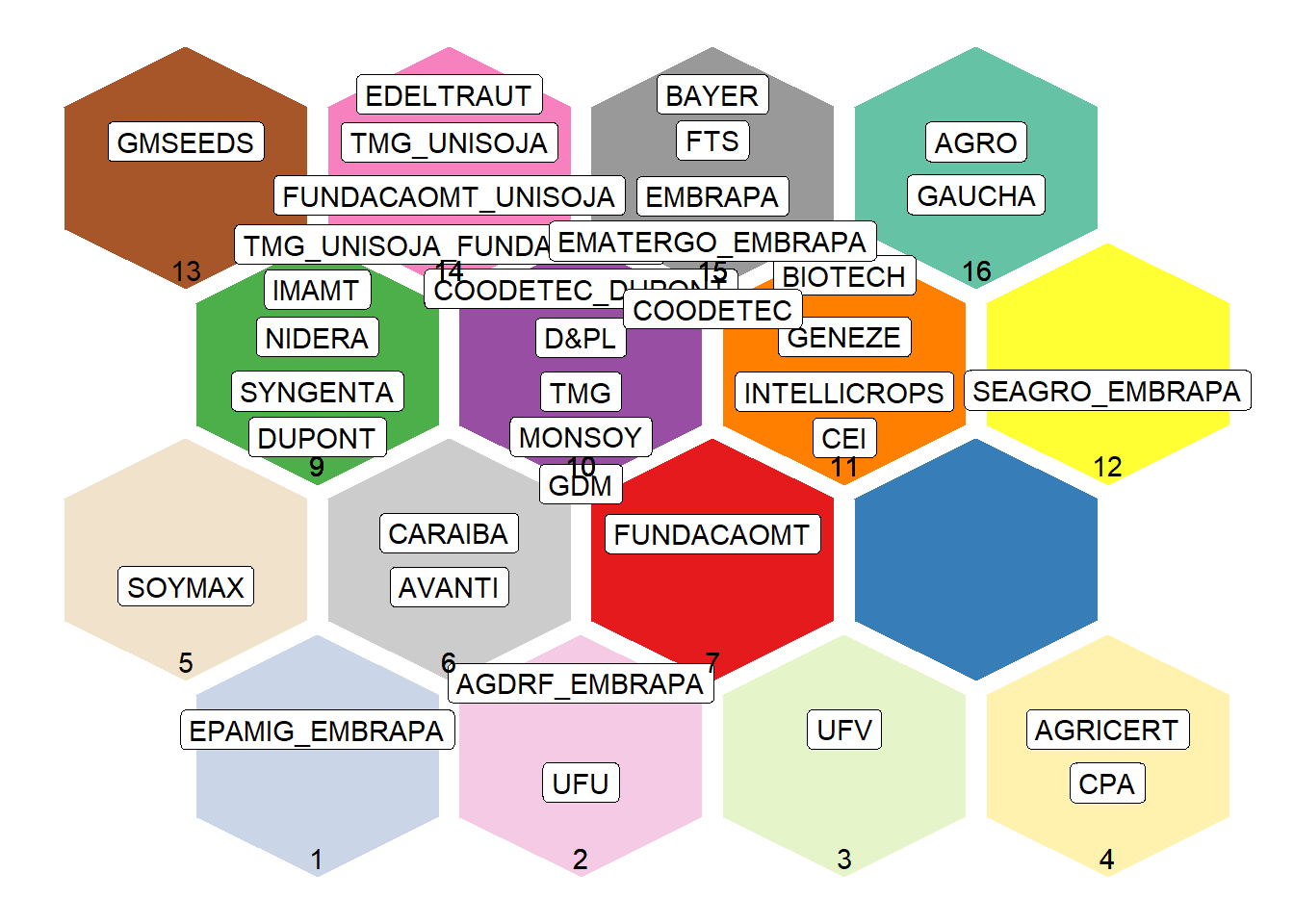

Graph: Distribution of Maintainers in Clusters

This plot shows the position of each maintainer in the SOM grid.
Each hexagon represents a neuron (cluster), and labels indicate the maintainers assigned to that cluster.

p <- som_coord %>%
  ggplot(aes(x0 = x, y0 = y)) +
  geom_regon(aes(
    r = 0.5,
    angle = 11,
    sides = 6,
    fill = factor(group)
  ),
  expand = unit(0.1, 'cm')) +
  theme(
    panel.background = element_blank(),
    axis.ticks = element_blank(),
    panel.grid = element_blank(),
    axis.text = element_blank(),
    axis.title = element_blank(),
    legend.position = "none"
  ) +
  scale_fill_manual(values = col_vector[40:56])

plotdata <- data %>%
  group_by(group, Maintainer_coded) %>%
  summarize(n = n()) %>%
  mutate(pct = (n / sum(n)),
         lbl = scales::percent(pct)) %>%
  ungroup()

plotdata$group <- as.integer(levels(plotdata$group))[plotdata$group]
plotdata <- plotdata %>% left_join(som_coord, by = "group")
plotdata <- na.omit(plotdata)

MC <- p +
  geom_label_repel(
    data = plotdata,
    aes(x = x, y = y, label = Maintainer_coded),
    max.overlaps = Inf,
    box.padding = 0.1,
    hjust        = 0.5,
    direction    = "y",
    color = "black",
    show.legend = FALSE,
    segment.color = NA
  ) +
  geom_text(
    data = plotdata,
    aes(
      x = x,
      y = (y - 0.45),
      label = group
    ),
    color = "black",
    show.legend = FALSE
  ) +
  theme(plot.title = element_blank())
MC

Interpretation:
- Each maintainer is placed in a cluster (hexagon).
- Clusters with multiple maintainers indicate groups with similar genetic profiles.

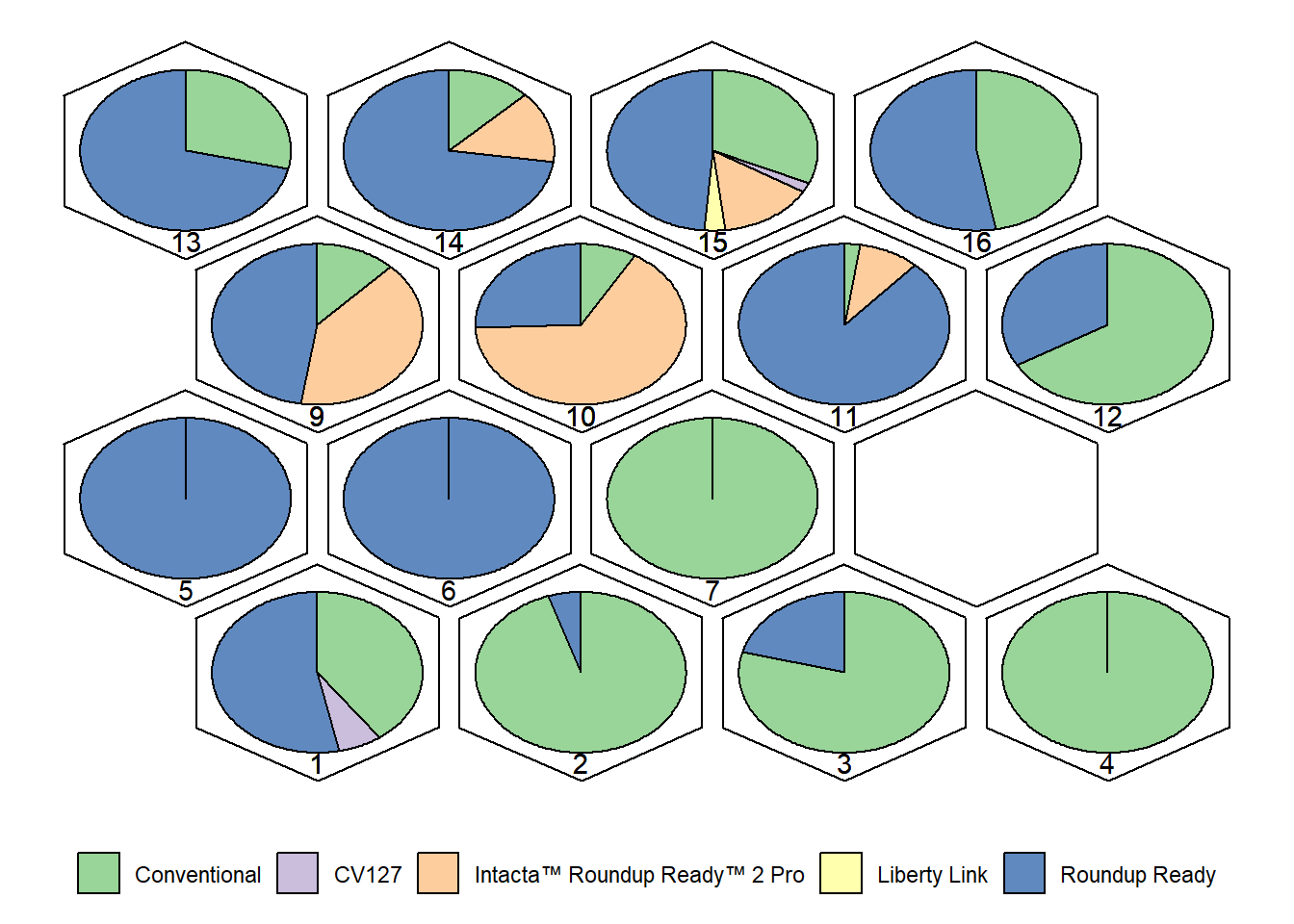

Graphs: Distribution of Trait Categories by Cluster

We now visualize how trait categories (e.g., Event Type, Legum Color, Seed Shape, Hypocotyl, Pubescence Color, Hilo Color, Growth Type, Seed Brightness) are distributed across clusters.
Each cluster is represented by a pie chart, showing the proportion of each trait category within that cluster.

Example: Event Type

p <- som_coord %>%
  ggplot(aes(x0 = x, y0 = y)) +
  geom_regon(
    aes(r = 0.5, angle = 11, sides = 6),
    expand = unit(0.1, 'cm'),
    alpha = 0,
    color = "black"
  ) +
  theme(
    panel.background = element_blank(),
    axis.ticks = element_blank(),
    panel.grid = element_blank(),
    axis.text = element_blank(),
    axis.title = element_blank(),
    legend.position = "bottom"
  )

plotdata <- data %>%
  group_by(group, `Event Type`) %>%
  summarize(n = n()) %>%
  mutate(pct = (n / sum(n)),
         lbl = scales::percent(pct)) %>%
  ungroup()

plotdata$group <- as.integer(levels(plotdata$group))[plotdata$group]
plotdata <- plotdata %>% left_join(som_coord, by = "group")
plotdata <- na.omit(plotdata)
levels(plotdata$`Event Type`) <-
  c(
    "Conventional",
    "CV127",
    "Intacta™ Roundup Ready™ 2 Pro",
    "Liberty Link",
    "Roundup Ready"
  )

EV <- p +
  geom_arc_bar(
    data = plotdata,
    aes(
      x0 = x,
      y0 = y,
      r0 = 0,
      r = 0.4,
      amount = n,
      fill = `Event Type`
    ),
    stat = 'pie',
    alpha = 0.8
  ) +
  scale_fill_manual(values = col_vector[1:5]) +
  geom_text(
    data = plotdata,
    aes(
      x = x,
      y = (y - 0.45),
      label = group
    ),
    color = "black",
    show.legend = FALSE
  ) +
  theme(plot.title = element_blank(), legend.title = element_blank())
EV

Interpretation:
- Each cluster shows the proportion of cultivars belonging to different event types.
- Similar plots can be generated for Legum Color, Seed Shape, Hypocotyl, Pubescence Color, Hilo Color, Growth Type, and Seed Brightness (as in your code).
- These visualizations help identify which traits are dominant in each cluster, providing biological meaning to the grouping.

Step 11: Productivity Graphs by Event and Growth Type

In this final step, we integrate productivity data with the classification of cultivars by event type and growth type.
The goal is to visualize how the adoption of different technologies and plant architectures has evolved over time, and how this relates to soybean yield.

Loading Productivity Data

We import the productivity dataset (yield.xlsx) and reload the main dataset (data.xlsx) to ensure consistency.

yield <- read_excel("data/yield.xlsx")
data <- read_excel("data/data.xlsx")

# Transform variables into factors
yield$Year <- as.factor(yield$Year)
for (i in 1:ncol(data)) {
  data[[i]] = as.factor(data[[i]])
}

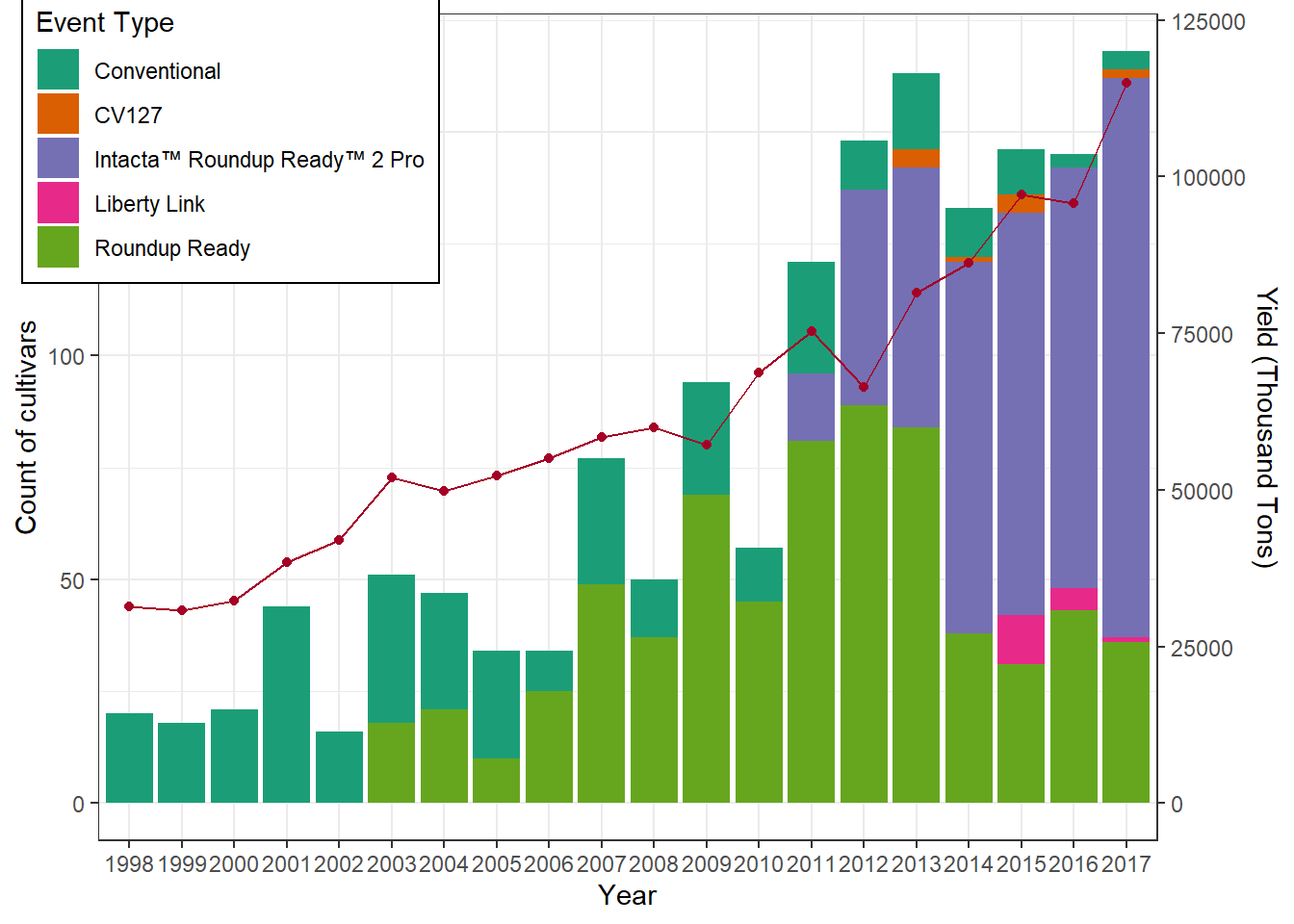

Graph 1: Productivity by Event Type Over Time

We plot the number of cultivars per event type (bars) alongside the soybean yield (line + points).
This dual-axis plot allows us to compare the evolution of cultivar adoption with national productivity trends.

levels(data$Event) <-
  c(
    "Conventional",
    "CV127",
    "Intacta™ Roundup Ready™ 2 Pro",
    "Liberty Link",
    "Roundup Ready"
  )

ggplot() +
  geom_bar(data = data, aes(Year, fill = Event)) +
  geom_point(data = yield,
             aes(x = Year, y = (Yield * (175 / 125000))),
             group = 1,
             color = "#a50026") +
  geom_line(
    data = yield,
    aes(x = Year, y = Yield * (175 / 125000)),
    group = 1,
    color = "#a50026"
  ) +
  scale_y_continuous(
    name = "Count of cultivars",
    sec.axis = sec_axis(~ . * 125000 / 175, name = "Yield (Thousand Tons)")
  ) +
  theme_bw() +
  xlab("Year") +
  scale_fill_brewer(palette = "Dark2") +
  labs(fill = "Event Type") +
  theme(
    legend.position = c(0.125, 0.85),
    legend.background = element_rect(fill = "white", colour = "black")
  )

Interpretation:
- Bars show how the number of cultivars of each event type changes over time.
- The red line shows soybean yield (in thousand tons).
- This allows us to see whether the adoption of certain technologies coincides with productivity gains.

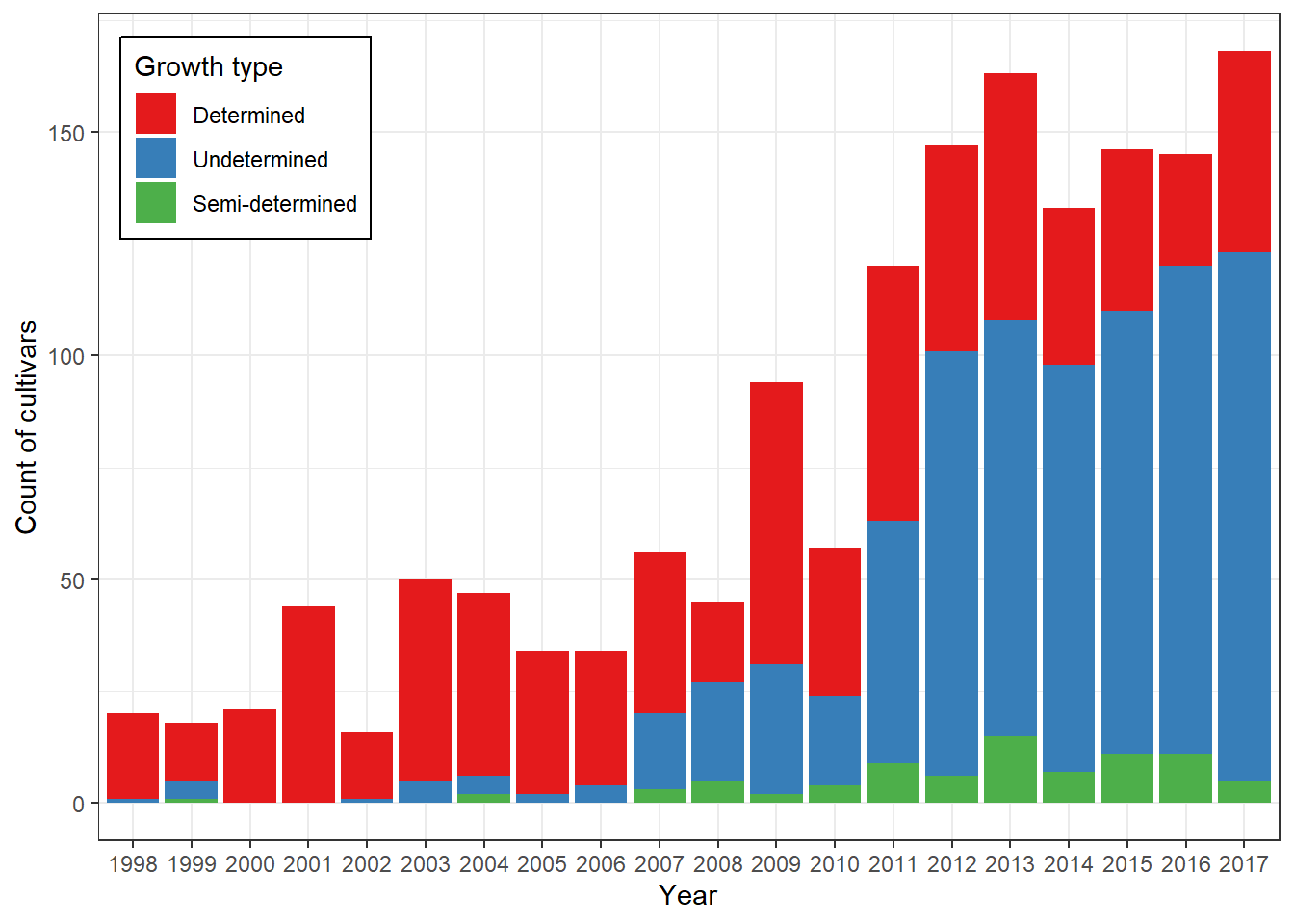

Graph 2: Productivity by Growth Type Over Time

We now analyze the distribution of cultivars by growth type (determined, undetermined, semi-determined) across years.

levels(data$Growth_type) <- c("Determined",
                              "Undetermined",
                              "Semi-determined")

data %>%
  filter(Growth_type != "NA") %>%
  ggplot() +
  geom_bar(aes(Year, fill = Growth_type)) +
  theme_bw() +
  xlab("Year") +
  ylab("Count of cultivars") +
  scale_fill_brewer(palette = "Set1") +
  labs(fill = "Growth type") +
  theme(
    legend.position = c(0.125, 0.85),
    legend.background = element_rect(fill = "white", colour = "black")
  )

Interpretation:
- This graph shows how the prevalence of different growth types has shifted over time.
- It helps identify whether certain plant architectures became dominant in specific periods, possibly linked to productivity improvements.

Conclusion

With these final plots, we close the pipeline by connecting genetic diversity and trait distribution to agronomic performance (yield).
This integrated view highlights how technological events and growth types have influenced soybean productivity trends in Brazil.

The complete analysis provides insights into the genetic diversity among soybean cultivar maintainers and how this diversity relates to agronomic outcomes.

Step 12: Conclusion

In this final step, we summarize the main findings of the analysis and highlight how the different methods complement each other to provide a comprehensive view of genetic diversity among soybean cultivar maintainers.

Key Insights

Data Preparation
- Cleaning and factor transformation ensured that categorical descriptors were properly handled.
- Removing maintainers with very few observations reduced noise and improved robustness.
Variable Selection (Random Forest)
- Identified the most informative traits for distinguishing maintainers.
- Less relevant traits were excluded, simplifying the dataset without losing explanatory power.
Dimensionality Reduction (MCA)
- Reduced the complexity of categorical data into a smaller number of dimensions.
- Allowed visualization of patterns of variation and relationships between traits and maintainers.
Clustering (SOM)
- Grouped maintainers into clusters based on trait similarity.
- The SOM grid provided a clear, interpretable 2D representation of genetic diversity.
- Distance maps and trait frequency plots revealed which descriptors were dominant in each cluster.
Productivity Trends
- Linking event types and growth types to yield data showed how technological adoption and plant architecture influenced productivity over time.
- The integration of genetic descriptors with agronomic performance provided a holistic view of cultivar evolution.

Final Remarks

This pipeline demonstrates the power of combining machine learning (Random Forest), multivariate statistics (MCA), and unsupervised neural networks (SOM) in plant breeding research.
By integrating genetic descriptors with productivity data, we gain valuable insights into how cultivar maintainers interact, diversify, and adapt to technological and agronomic demands.

The workflow is fully reproducible and can be adapted to other crops or datasets, serving as a template for future studies in genetic diversity and cultivar management.

sessionInfo()

R version 4.5.1 (2025-06-13 ucrt)
Platform: x86_64-w64-mingw32/x64
Running under: Windows 11 x64 (build 26100)

Matrix products: default
  LAPACK version 3.12.1

locale:
[1] LC_COLLATE=Portuguese_Brazil.utf8  LC_CTYPE=Portuguese_Brazil.utf8
[3] LC_MONETARY=Portuguese_Brazil.utf8 LC_NUMERIC=C
[5] LC_TIME=Portuguese_Brazil.utf8

time zone: America/Sao_Paulo
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] gridExtra_2.3        ggrepel_0.9.6        RColorBrewer_1.1-3
 [4] kohonen_3.0.12       ggforce_0.5.0        reshape2_1.4.4
 [7] magrittr_2.0.4       lubridate_1.9.4      forcats_1.0.0
[10] stringr_1.5.2        dplyr_1.1.4          purrr_1.1.0
[13] readr_2.1.5          tidyr_1.3.1          tibble_3.3.0
[16] tidyverse_2.0.0      randomForest_4.7-1.2 readxl_1.4.5
[19] factoextra_1.0.7     ggplot2_4.0.0        FactoMineR_2.12

loaded via a namespace (and not attached):
 [1] gtable_0.3.6         xfun_0.53            bslib_0.9.0
 [4] htmlwidgets_1.6.4    lattice_0.22-7       tzdb_0.5.0
 [7] vctrs_0.6.5          tools_4.5.1          generics_0.1.4
[10] cluster_2.1.8.1      pkgconfig_2.0.3      Matrix_1.7-3
[13] S7_0.2.0             scatterplot3d_0.3-44 lifecycle_1.0.4
[16] compiler_4.5.1       farver_2.1.2         git2r_0.36.2
[19] leaps_3.2            httpuv_1.6.16        htmltools_0.5.8.1
[22] sass_0.4.10          yaml_2.3.10          later_1.4.4
[25] pillar_1.11.1        jquerylib_0.1.4      MASS_7.3-65
[28] flashClust_1.01-2    DT_0.34.0            cachem_1.1.0
[31] nlme_3.1-168         tidyselect_1.2.1     digest_0.6.37
[34] mvtnorm_1.3-3        stringi_1.8.7        splines_4.5.1
[37] labeling_0.4.3       polyclip_1.10-7      rprojroot_2.1.1
[40] fastmap_1.2.0        grid_4.5.1           cli_3.6.5
[43] withr_3.0.2          scales_1.4.0         promises_1.3.3
[46] timechange_0.3.0     estimability_1.5.1   rmarkdown_2.29
[49] emmeans_1.11.2-8     workflowr_1.7.2      cellranger_1.1.0
[52] hms_1.1.3            evaluate_1.0.5       knitr_1.50
[55] mgcv_1.9-3           rlang_1.1.6          Rcpp_1.1.0
[58] xtable_1.8-4         glue_1.8.0           tweenr_2.0.3
[61] rstudioapi_0.17.1    jsonlite_2.0.0       plyr_1.8.9
[64] R6_2.6.1             fs_1.6.6             multcompView_0.1-10

Weverton Gomes da Costa, Doutorando, Pós-Graduação em Genética e Melhoramento - Universidade Federal de Viçosa, wevertonufv@gmail.com ↩︎

Genetic diversity and interaction between the maintainers of commercial Soybean cultivars using self-organizing maps

Costa, W. G.¹

2025-10-03

Introduction

Step 1: Loading Libraries

Step 2: Defining Colors

Step 3: Reading the Data

Step 4: Data Cleaning

Step 5: Transforming Variables into Factors

Step 6: Variable Selection with Random Forest

Importance of traits based on Accuracy and Gini Index

Plot importance of traits

Excluding the 4 least important traits

Step 7: Multiple Correspondence Analysis (MCA)

Running MCA

Eigenvalues

Cumulative Variance Explained

Step 8: Clustering with Self-Organizing Maps (SOM)

Defining the SOM Grid

Training the SOM

Step 9: Visualizing the SOM Results

Interaction Graph

Trait Frequency

Distance Graph Between Neighboring Neurons

Step 10: Distribution of Maintainers and Traits in SOM Clusters

Graph: Distribution of Maintainers in Clusters

Graphs: Distribution of Trait Categories by Cluster

Step 11: Productivity Graphs by Event and Growth Type

Loading Productivity Data

Graph 1: Productivity by Event Type Over Time

Graph 2: Productivity by Growth Type Over Time

Conclusion

Step 12: Conclusion

Key Insights

Final Remarks

Genetic diversity and interaction between the maintainers of commercial Soybean cultivars using self-organizing maps

Costa, W. G.1

2025-10-03

Introduction

Step 1: Loading Libraries

Step 2: Defining Colors

Step 3: Reading the Data

Step 4: Data Cleaning

Step 5: Transforming Variables into Factors

Step 6: Variable Selection with Random Forest

Importance of traits based on Accuracy and Gini Index

Plot importance of traits

Excluding the 4 least important traits

Step 7: Multiple Correspondence Analysis (MCA)

Running MCA

Eigenvalues

Cumulative Variance Explained

Step 8: Clustering with Self-Organizing Maps (SOM)

Defining the SOM Grid

Training the SOM

Step 9: Visualizing the SOM Results

Interaction Graph

Trait Frequency

Distance Graph Between Neighboring Neurons

Step 10: Distribution of Maintainers and Traits in SOM Clusters

Graph: Distribution of Maintainers in Clusters

Graphs: Distribution of Trait Categories by Cluster

Step 11: Productivity Graphs by Event and Growth Type

Loading Productivity Data

Graph 1: Productivity by Event Type Over Time

Graph 2: Productivity by Growth Type Over Time

Conclusion

Step 12: Conclusion

Key Insights

Final Remarks

Costa, W. G.¹
